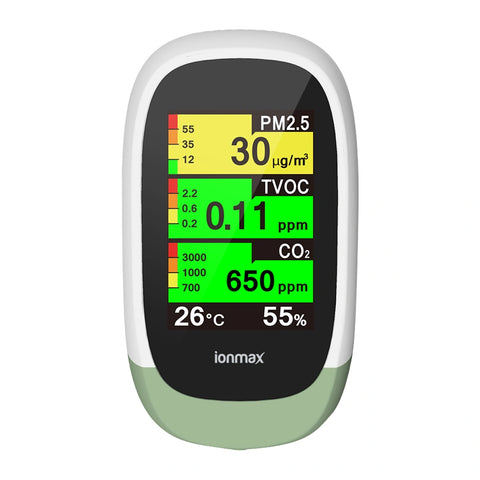

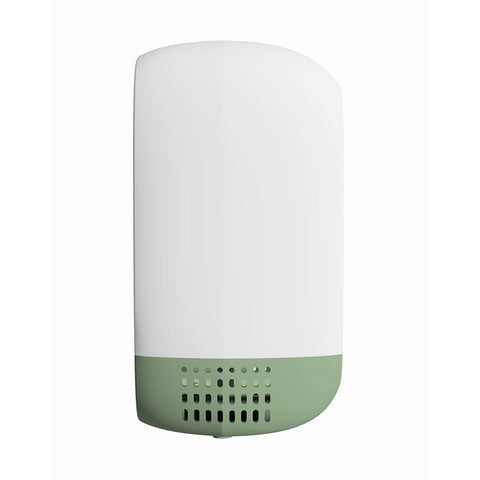

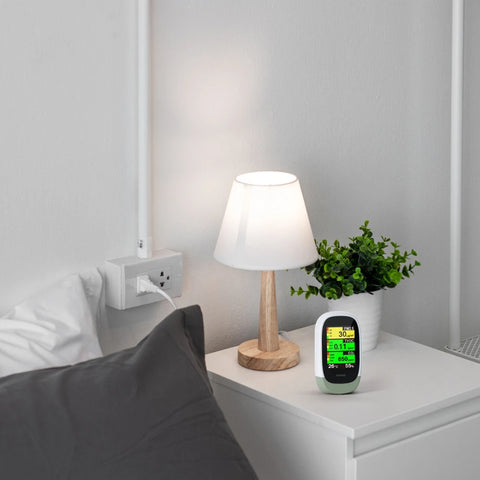

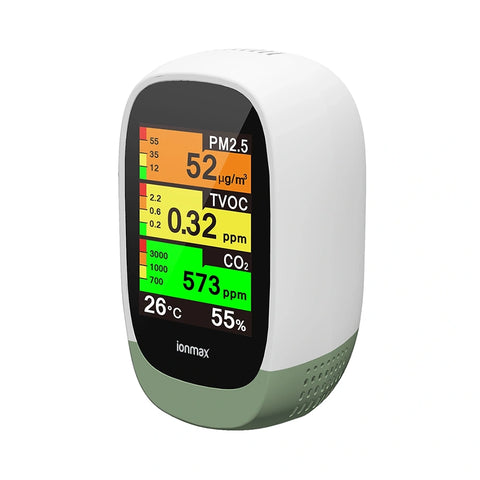

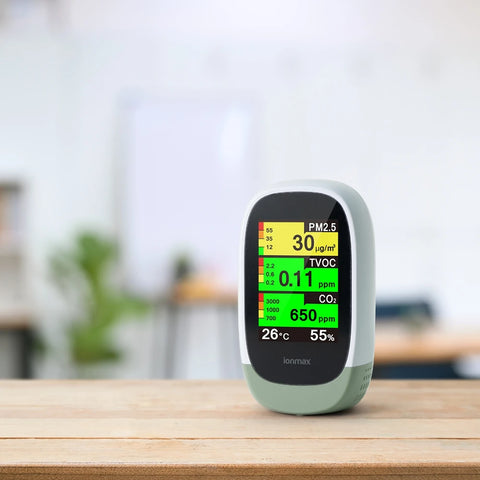

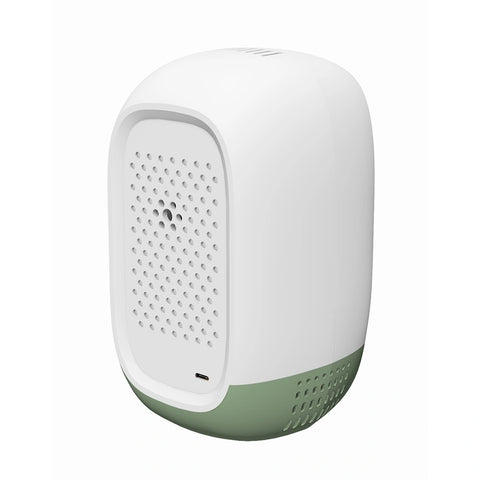

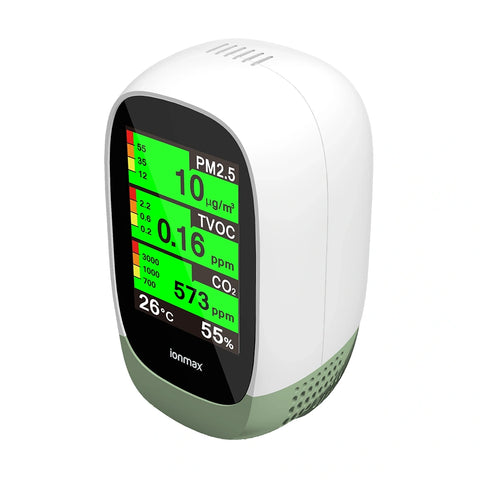

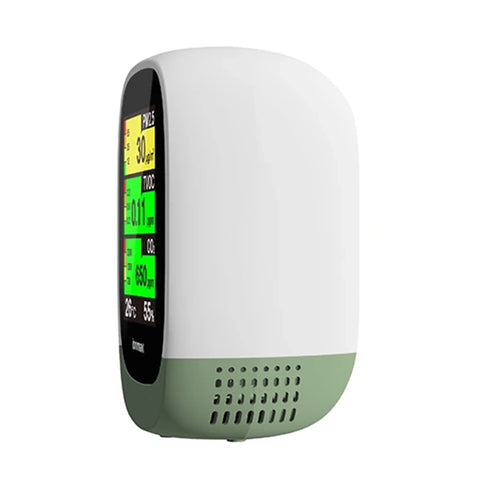

Ionmax Q10 Air Quality Monitor

Monitor your indoor air quality in real time with the Ionmax Q10. Featuring rapid detection, industrial-grade precision, and a sleek design, it measures PM2.5, TVOC, CO2, temperature and humidity for a healthier home or office environment.

Key Features:

• 5-in-1 Air Quality Monitoring - Detects PM2.5, TVOC, CO2 (calculated), temperature, and humidity.
• Fast & Accurate Readings - PM2.5 in 2 seconds, TVOC and CO2 in 1 second, with industrial-grade calibration.
• Clear Visual Display - 3.5" high-contrast screen with 160° wide viewing angle and a colour-coded air quality index.
• Compact & Energy Efficient - Sleek, silent design with a USB-C power input and low energy consumption.
• Smart Aero-Driving System - Patent-pending system for enhanced airflow and sensor performance.

Specifications:

DISPLAY:

• 3.5" 320 x 480 TFT LCM
• 160° wide viewing angle


DETECTION RANGE:

• PM2.5: 0 ~ 500μg/m3
• TVOC: 0~20ppm (0.01~2.99ppm displayed in 2 decimals; 3.0~20.0 in 1 decimal)
• CO2* : 400~3500ppm
• Temperature: 0~60°C
• Humidity: 0~99%RH


* CO2 is calculated from Ethanol and H2 measurements, may slightly differ from the actual CO2 value.

RESPONSE TIME:

• PM2.5: 2 seconds
• TVOC: 1 second
• CO2: 1 second


POWER INPUT: 5V DC USB-C

DIMENSIONS:

• H: 146mm
• D: 75mm
• W: 84mm

WEIGHT: 0.215kg
